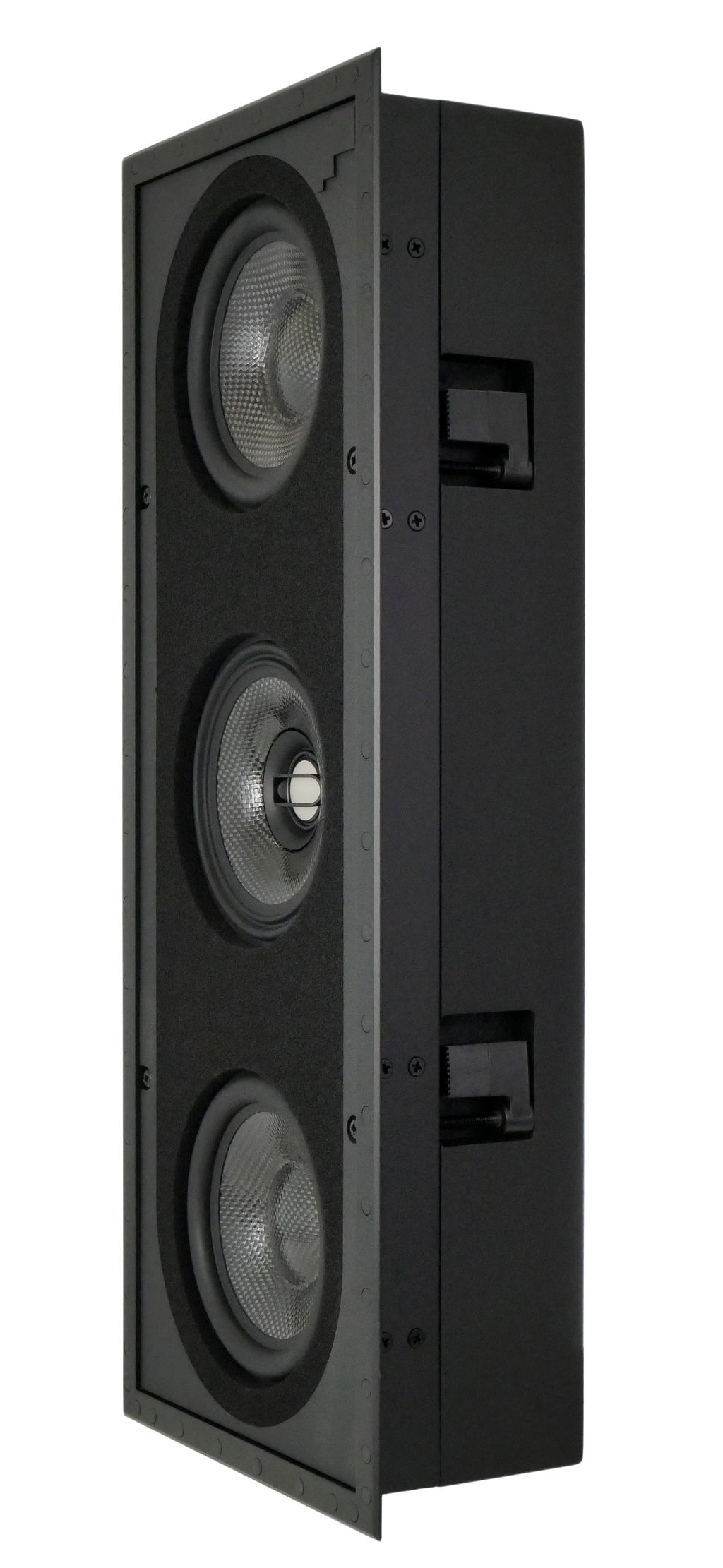

In-Wall
- Purpose-built design to bring out the best in movies, TV, gaming and multimedia content.
- Coaxial midrange and tweeter for accurate imaging and crystal-clear dialog.
- Dual or quad woofers for deep impactful bass response.
- Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms.
- Designed to fit into a standard wall cavity.
- Mix and match with Visual Performance Cinema Series in-ceiling speakers to achieve optimal sound in any room layout.
- Provides a consistent aesthetic with other Visual Performance Series speakers.
Tweeter
Midrange
Woofer
Frequency Response
Impedance
Power Handling
Sensitivity
Speaker Depth
Dimensions (WxH)
Cut-Out Dimensions (WxH)
Grille Material
Shipping Weight
LCR1
Tweeter
1" (25mm) silk dome, Ferrofluid-cooled
Midrange
4" (100mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Woofer
Two 5 1/4" (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz - 20kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
Speaker Depth
3 7/8" (98mm)
Dimensions (WxH)
8 7/8" x 21 3/4" (225mm x 553mm)
Cut-Out Dimensions (WxH)
7 1/2" x 20 1/2" (191mm x 521mm)
Grille Material
Perforated steel
Shipping Weight
19 lbs (8.6kg) each
SUR1
Tweeter
Two 1" (25mm) silk domes, Ferrofluid-cooled
Midrange
Two 3" (76mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Woofer
Two 5 1/4" (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz - 20kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
Speaker Depth
3 7/8" (98mm)
Dimensions (WxH)
8 7/8" x 21 3/4" (225mm x 553mm)
Cut-Out Dimensions (WxH)
7 1/2" x 20 1/2"
(191mm x 521mm)
Grille Material
Perforated steel
Shipping Weight
19 lbs (8.6kg) each
LCR2
Tweeter
1" (25mm) silk dome, Ferrofluid-cooled
Midrange
4" (100mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Woofer
Four 5 1/4" (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz - 20kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 200 watts maximum
Sensitivity
92dB SPL (2.83V/1 meter)
Speaker Depth
3 7/8" (98mm)
Dimensions (WxH)
8 7/8" x 34 7/8" (225mm x 886mm)
Cut-Out Dimensions (WxH)
7 1/2" x 33 1/2"
(191mm x 851mm)
Grille Material
Perforated steel
Shipping Weight
29 lbs (13.2kg) each
SUR2
Tweeter
Two 1" (25mm) silk domes, Ferrofluid-cooled
Midrange
Two 3" (76mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Woofer
Four 5 1/4" (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz - 20kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 200 watts maximum
Sensitivity
92dB SPL (2.83V/1 meter)
Speaker Depth
3 7/8" (98mm)
Dimensions (WxH)
8 7/8" x 34 7/8" (225mm x 886mm)
Cut-Out Dimensions (WxH)
7 1/2" x 33 1/2"
(191mm x 851mm)
Grille Material
Perforated steel
Shipping Weight
29 lbs (13.2kg) each
