Professional Series Dual 10" Bandpass Subwoofer

NEW! Dual 10" Bandpass Subwoofer

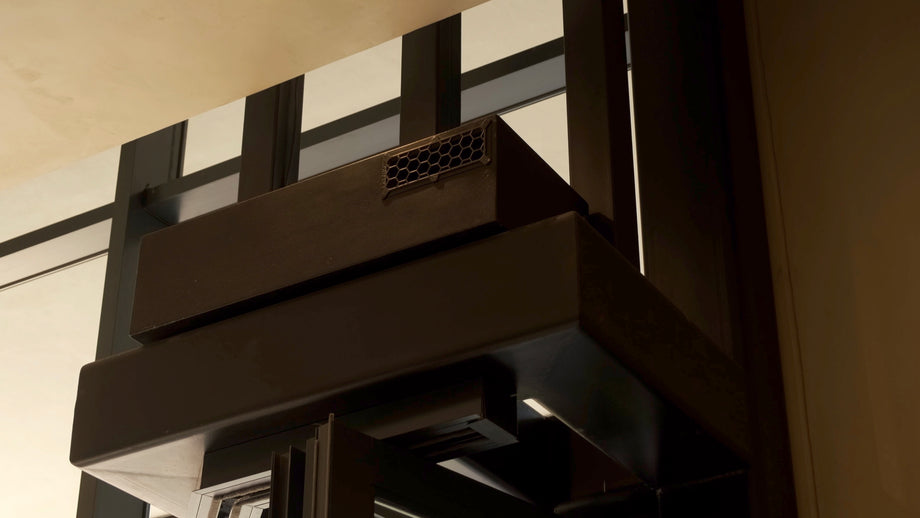

The PS-S210SUBT utilizes all-new 2 x 10” (254mm) low profile, high excursion drivers, that were specifically engineered in-house by Sonance for this product. The polyurethane-coated, laminated-plywood enclosure features an extremely shallow design which allows it to be used in a wide range of specialty applications such as under restaurant booths or banquettes (using the included feet), or mounted onto the side of rafters, on walls or under ceilings (with the optional C-bracket).

One of the most unique and versatile features of the PS-S210SUBT is the ability to port either from the front or the side of the enclosure. The installer simply unscrews the port from the front of the cabinet, and then unscrews a blanking plate from the side, and swaps them. This will allow the product to be used in a variety of installation locations, while always ensuring the optimum sonic performance is achieved.

The PS-S210SUBT features Sonance’s Laminated Core Technology transformer (SLCT), delivering full-fidelity performance in either 70V or 100V mode. This, combined with the built-in low pass filter, allows the subwoofer to be driven on the same feed as the other full-range loudspeakers in a system, negating the need for additional amplifier channels and DSP.






Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage
Directivity Factor (Q)
Directivity DI
Rated Maximum SPL
Rated Impedence
Transformer Taps
Crossover Point
Overall Dimension
Net Weight
Shipping Weight
Unit of Measure
LF Driver
Input Connector
Safety Agency
Suspension Points
Cabinet
Optional Accessory
Dual 10" Subwoofer

Dual 10" Subwoofer



Frequency Range (-10dB)
34Hz - 155Hz
Frequency Range (-3dB)
44Hz - 132 Hz
Power Capacity
500 Watts Continuous Program Power | 300 Watts Pink Noise
Nominal Sensitivity
94dB
Nominal Coverage
180 degrees conical coverage
Directivity Factor (Q)
N/A
Directivity DI
N/A
Rated Maximum SPL
121dB @ 1 meter (3.3 feet), 127dB peak
Rated Impedence
4 Ohms nominal, 3.7 Ohms minimum
Transformer Taps
300W, 150W, (75W 70V)
Crossover Point
150Hz
Overall Dimension
9" Height x 33" Width x 13.78" Depth (228mmx 838mm x 350mm)
Net Weight
61 lbs (27.7kgs)
Shipping Weight
75.8lbs (33 kgs)
Unit of Measure
Single
LF Driver
Dual 10" (254mm) woven glass fiber cones with Butyl rubber surrounds
Input Connector
Four pin, Euroblock with loop output connections
Safety Agency
None
Suspension Points
4 x M10 on two sides
Cabinet
Laminated plywood
Optional Accessory
C-Bracket with 4 x M10 mounting bolts
