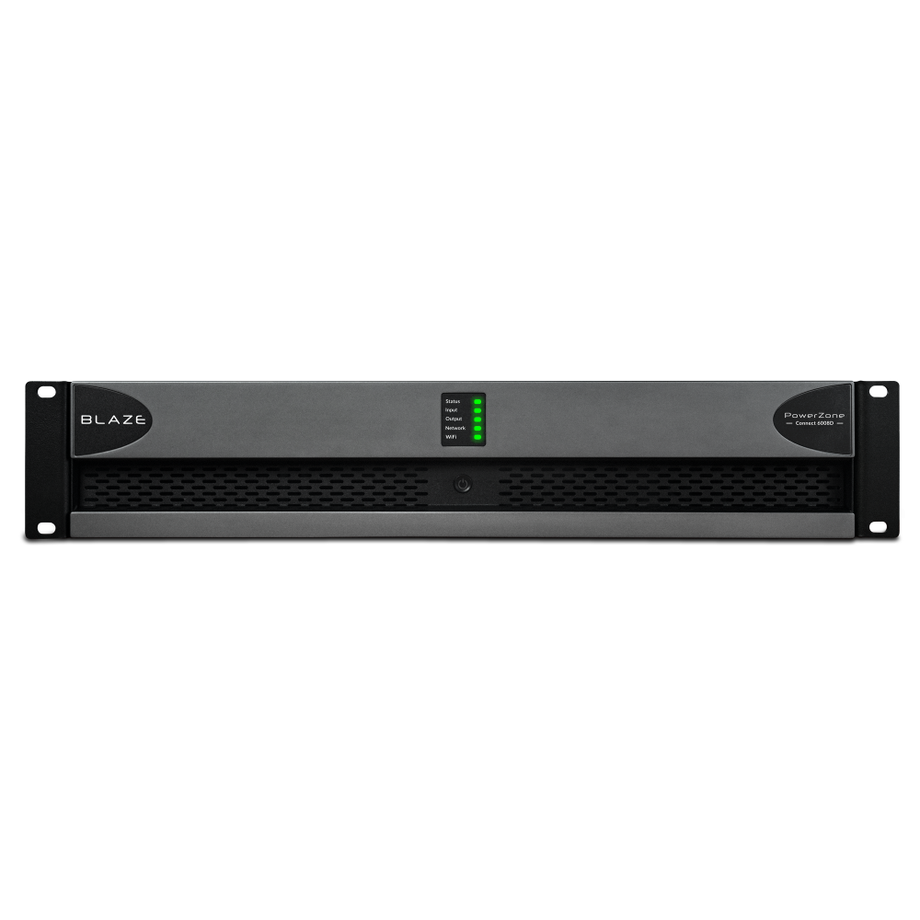

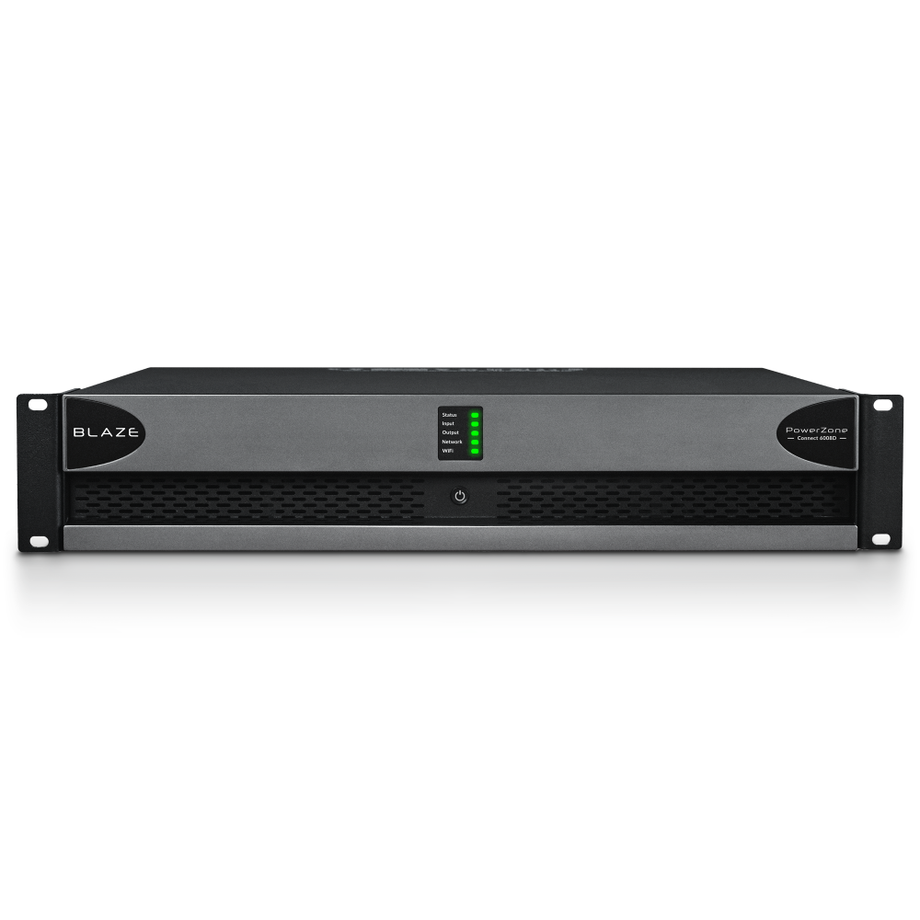

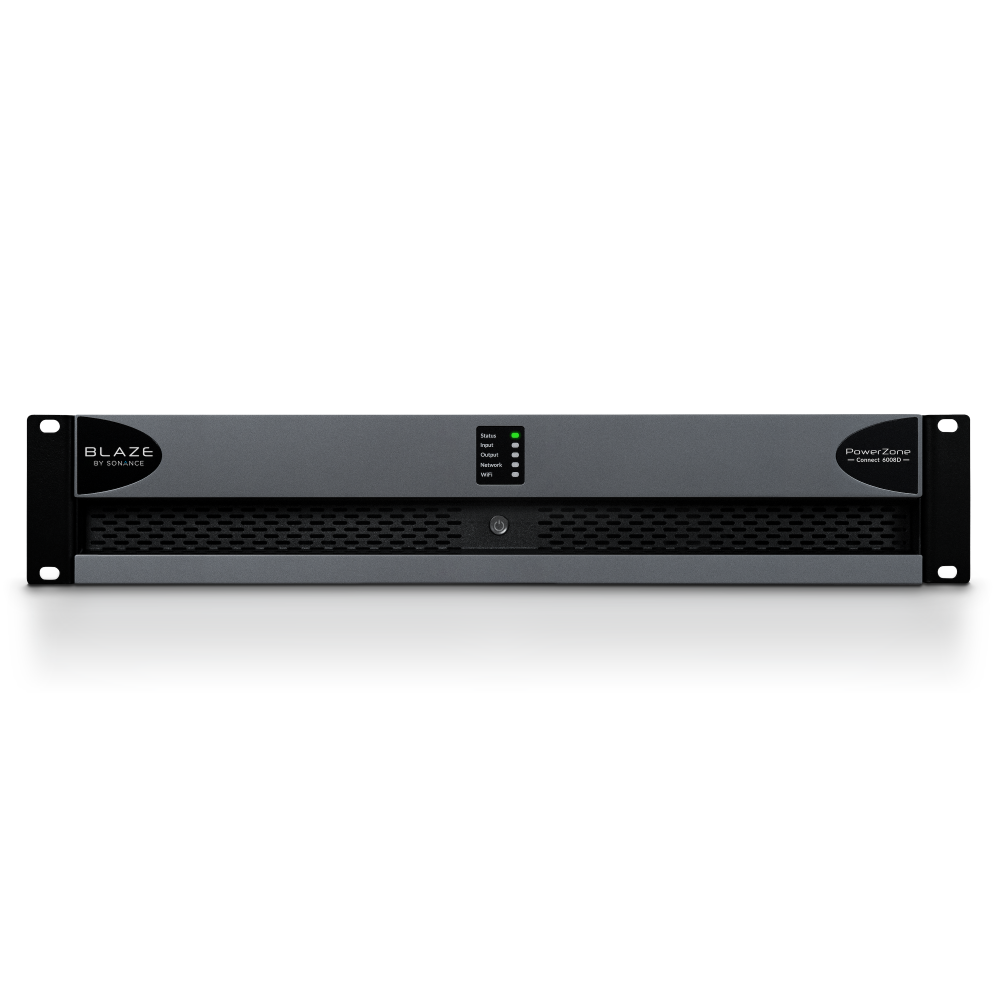

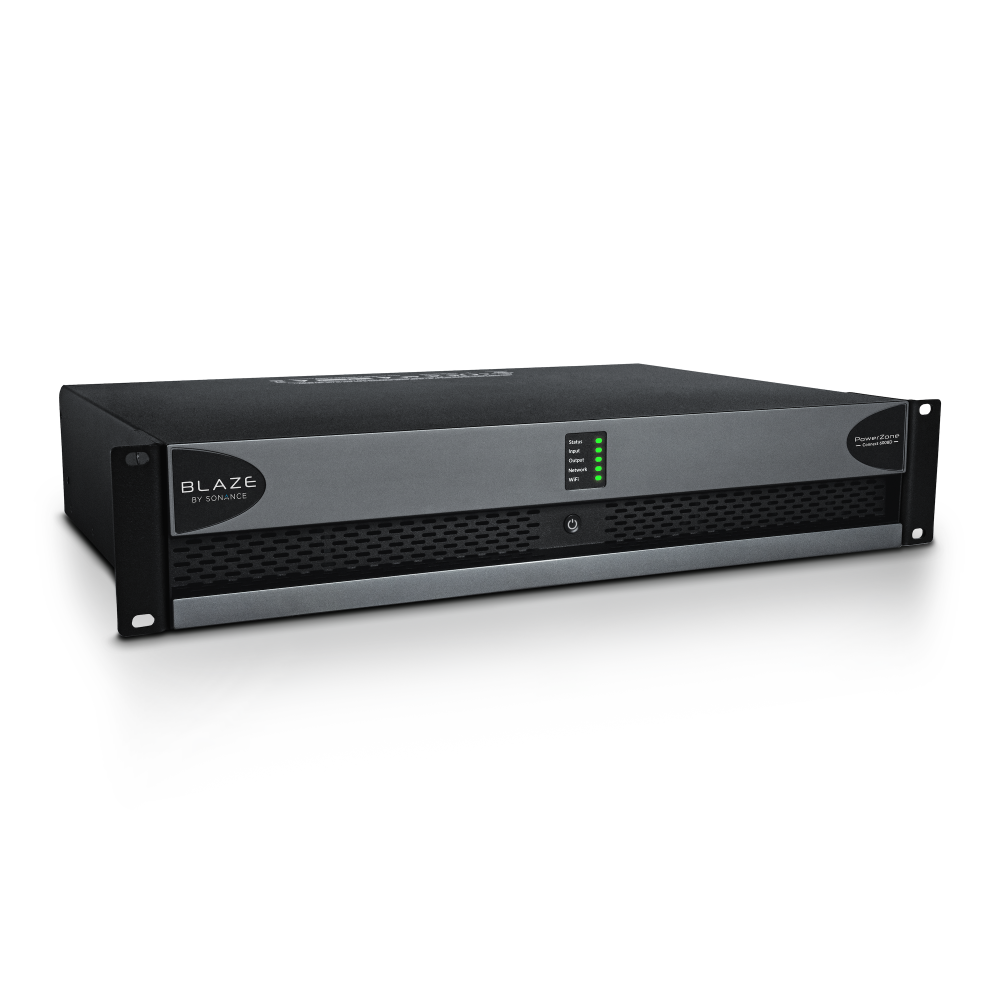

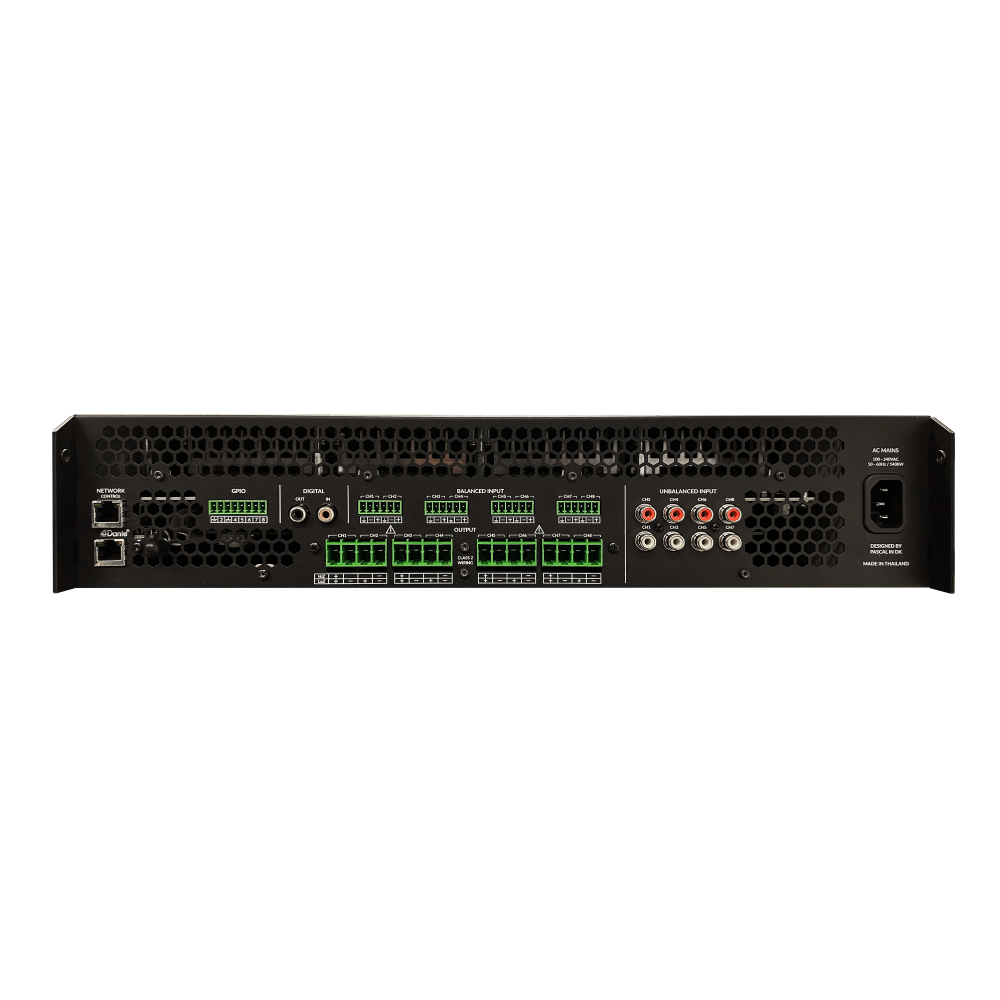

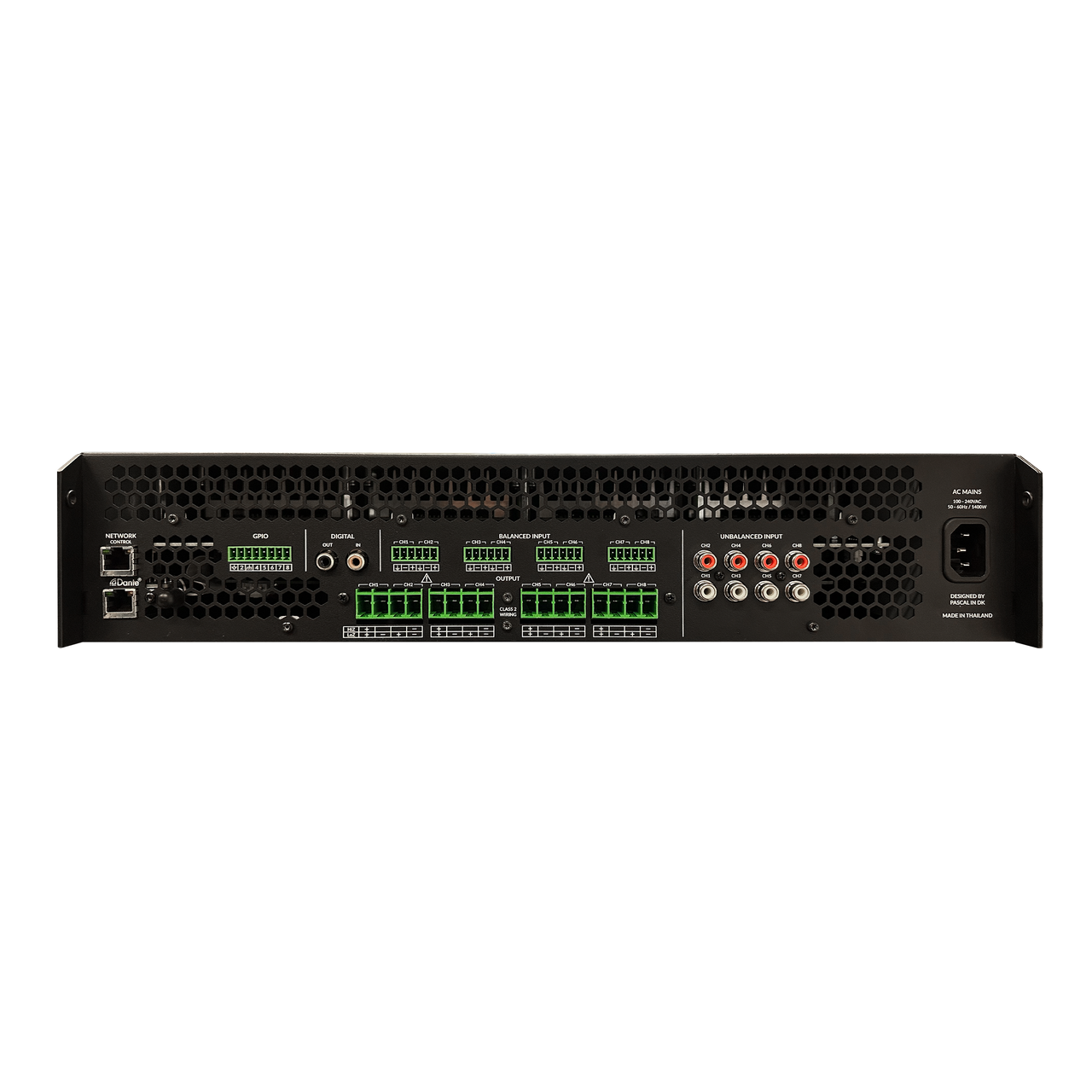

PowerZone Connect 6008D

Blaze Amplifiers

6000 W DSP-enabled Class-D amplifier with 8 channels and Dante™

PowerZone Connect 6008D

Key Features

  • Full rack 2U form factor
  • Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
  • Hybrid power distribution in both Lo-Z and Hi-Z
  • Powered by Pascal UMAC™ Class-D technology
  • Dante™ Ultimo™ chip 4×4 (4-channels)
  • S/PDIF input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • UL listed audio equipment
  • UREC™ universal power supply with PFC
  • 5 Year warranty

Specifications

SKU | Color

LBX-888-011 (PowerZone Connect 6008D), LBX-888-019 (PowerZone Connect 6008D JPN)

Dimensions (WxHxD)

17.3" x 3.5" x 16.3" (439.42mm x 88.9mm x 414.02mm)

Weight

25.6 lbs. (11.61kg)

Channel Configuration

Lo-Z: 8x750W @2/4Ω Hi-Z: 4x 1200W @70V

Total System Power

6000 W

Output Power @ 2 ohms

8 x 750 W (SE)

Output Power @ 4 ohms

8 x 750 W (SE) 4 x 1500 W (BTL)

Output Power @ 8 ohms

8 x 400 W (SE) 4 x 1500 W (BTL)

Output Power @ 70V

4 x 1200 W (BTL)

Output Power @ 100V

4 x 1500 W (BTL)

Powersharing

BTL

Power Consumption

1400 W

Dante Compatibility

Yes

Copy All Specs
